REFERENCES - PRIVREDNA BANK ZAGREB, Dure Sporera

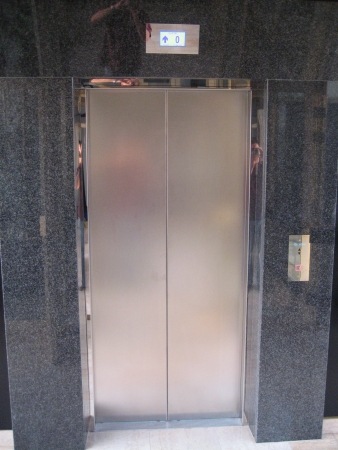

2 electric passenger elevators

.

ELECTRIC PASSENGER ELEVATOR - SERVO SYSTEM

Capacity: 900kg or 12 pers. Travel height: 17,6 m
Speed: 1,2 m/s Type of door: automatic central - VVVF regulated drive (frequency changer)
N of stops: 6 Door protection: 3D infrared light curtain
Drive: gear with frequency regulated electro-motor VVVF, OMRON 3G3FV regulator, 240 starts per hour Load control: electronic MC measurement of full load and overload of cabin
Drive control: MC - SIMPLEX Telemonitoring & Telecontrol System - system for 24-hours control and diagnostic of elevators with Remote Control functions
Signalization: LCD (liquid crystal display)

Energy saving 49%

.

ELECTRIC PASSENGER ELEVATOR - SERVO SYSTEM

Capacity: 1010kg or 13 pers. Travel height: 17,6 m
Speed: 1,6 m/s Type of door: automatic central - VVVF regulated drive (frequency changer)
N of stops: 6 Door protection: 2D infrared light curtain
Drive: gear with frequency regulated electro-motor VVVF, LiftEquip regulator, 240 starts per hour Signalization: LCD (liquid crystal display)
Drive control: MC 3000 - SIMPLEX - LON BUS Entertainment: Elevator Audio System
Detector of position: system for linear shaft registration
measure precision  0,1cm

Energy saving 49%
